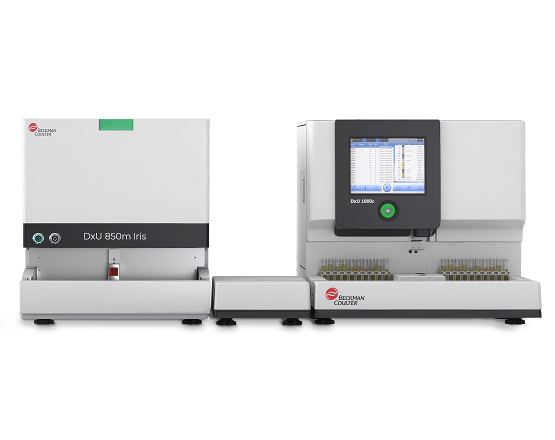

Today’s laboratories require reliable solutions that reduce manual review and standardize high‑throughput workflows. The DxU 1800 System automated urinalysis instrumentation streamlines operations by reducing manual microscopic review rates to less than 3%.*1 This high-throughput solution optimizes staff utilization, saves significant time, and reduces costs—enabling laboratories to increase testing capacity, enhance clinical utility, and improve overall workflow efficiency.
The DxU 1800 System streamlines urinalysis workflow with a lower manual microscopic review rate. This is achieved with proprietary Digital Flow Morphology technology and APR Software, which deliver standardized results through automated particle recognition, reducing total sample processing time compared to manual microscopy.2
Robust APR Software evaluates particles by size, shape, contrast and texture. It auto-classifies 12 urine sediment particles and sub-classifies 27 particles, resulting in high level of confidence by delivering accurate identification of particles and achieving shortened turnaround time.
Automating most urine sediment reviews allows laboratory professionals to walk away from the urine analyzer so they can focus on more critical areas of the laboratory. Edit-Free Release (EFR) technology automatically sends results to the LIS based on user-defined parameters, reducing time-consuming steps and increasing lab efficiency. EFR works together with APR Software and Particle Verification Ranges (PVRs) to enhance auto-release options.
iWARE Integrated Urinalysis Software solution, standard on the analyzer, provides onboard validation and result verification into a single step without the need for middleware. The software helps laboratories become more efficient by reducing time-consuming steps.‡1
| MICROSCOPY | CHEMISTRY | ||
|---|---|---|---|
Menu/Test parameters |
Urine particles: RBC, WBC, WBC Clumps, Squamous Epithelial Cells,
Non-Squamous Epithelial Cells, Hyaline Casts, Unclassified Casts,
Unclassified Crystals, Bacteria, Yeast, Sperm, Mucus
Additional categories for subclassification:
|
Glucose, Protein, Bilirubin, Urobilinogen, pH, Blood,
Ketones, Nitrite, Leukocyte, Ascorbic Acid
System Parameters: Color, Clarity/Turbidity, Specific Gravity |
|
Measurement technology |
Digital Flow Morphology using Auto-Particle Recognition Software |
|
|
Measurement wavelengths |
N/A | 5 LED wavelengths (470, 550, 570, 620, 720 nm) | |
Test strips |
N/A | DxU 11FA 100-test vial; Storage (2°-30°C) | |
Test strip capacity |
N/A | Up to 500 test strips | |
Sample throughput |
|
Up to 300 samples per hour (on DxU 1800c Standalone Analyzer) | |
Sample identification and capacity |
|
||
Specimen volume |
|
Minimum: 2 mL, 40 mm from the bottom of tube (on DxU 1800c Standalone Analyzer) | |
Workstation |
|
||
Data storage |
Onboard storage of up to 10,000 patient results | ||
Communication interface |
Bidirectional with host query | ||
Operating environment |
|
||
Electrical power requirement |
100–240 VAC, 50-60 Hz, 3.5 A max |
Monitor 100-240 VAC, 50-60 Hz, 50 watts max |
Chemistry module 100-240 VAC, 50-60 Hz |
Dimensions and Weight |
Depth |
Width |
Height |
Weight |
| Microscopy Module | 25.4 in (64.5 cm) | 20.9 in (53 cm) | 23.0 in (58.4 cm) | 100 lbs (45.4 kg) |
| System Bridge | 3.12 in (7.92 cm) | 4.98 in (12.65 cm) | 4.6 in (11.68 cm) | 1 lb (457.6 g) |
| Chemistry Module | 24.2 in (61.5 cm) | 27.7 in (70.4 cm) | 22.4 in (60.0 cm) | 165 lbs (75 kg) |
| CPU | 10.8 in (27.4 cm) | 5.5 in (14.0 cm) | 12.7 in (32.3 cm) | 28 lbs (12.7 kg) |
| Touchscreen monitor with base | 8.6 in (21.8 cm) | 20.4 in (51.8 cm) | 13.8 in (35 cm) | 19.1 lbs (8.7 kg) |
